1A pressure reducing valve has a more complicated shape than an ordinary section of pipe. The valve body, bonnet, adjustment assembly, upstream and downstream flanges, pilot components, gauges and small-bore tubing can all affect the insulation pattern. A loose rectangular blanket leaves large gaps, while an oversized one-piece cover can obstruct adjustment and routine inspection.

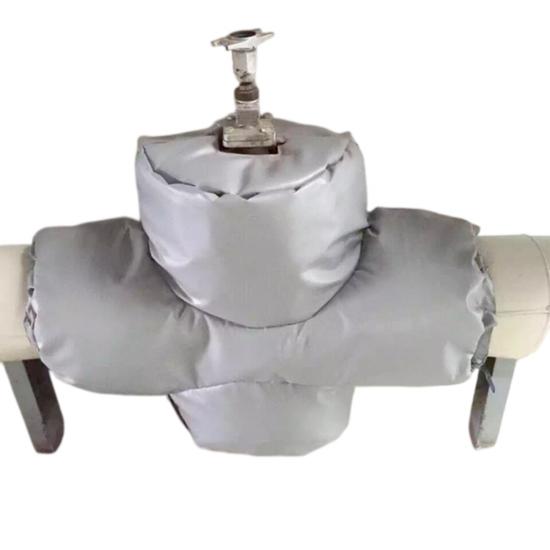

BSTFLEX manufactures removable pressure reducing valve insulation jackets to the actual valve model, drawing or field dimensions. The jacket follows the hot valve surfaces and is divided where technicians need access. It can be removed for servicing and reinstalled without rebuilding the adjacent pipe insulation.
| Valve area | Typical jacket arrangement | Information required |
|---|---|---|
| Main valve body | Fitted body section with controlled overlaps | Body dimensions, valve size, orientation and surface temperature |
| Bonnet and adjustment assembly | Shaped upper panel, access opening or separate removable section | Bonnet height, diameter, adjustment method and service clearance |
| Inlet and outlet flanges | Integrated ends or independent flange jackets | Flange outside diameter, thickness, bolt projection and pipe insulation |
| Pilot, gauges and tubing | Reinforced cutouts, access flap or independently covered component | Locations, projections, tubing route and parts that must remain visible |
| Drain and low-point connections | Open clearance or separately removable lower panel | Connection size, valve or trap arrangement and drainage path |
A general-purpose valve blanket may fit the body but fail around the features that make a pressure reducing valve adjustable and serviceable. The cover must account for the valve's operating orientation, bonnet, spring housing, adjustment screw, pilot, diaphragm chamber, sensing connection and nearby instruments.
The insulation jacket is an external thermal component. It does not regulate pressure, replace a valve enclosure or correct an incorrectly sized or malfunctioning valve. Valve selection, set pressure, capacity, installation and control stability remain the responsibility of the steam or process-system designer.
A direct-acting pressure reducing valve usually combines the main body, spring housing or diaphragm section and an accessible pressure-adjustment point. The upper part may project well beyond the pipe centerline, and the adjustment mechanism may need periodic access.
The jacket can use a fitted body section with a shaped bonnet cover. Where adjustment is frequent, the upper section can be removed separately or the adjustment point can remain outside the insulation. The design must not place fabric or insulation against moving stems, indicator scales, vents or components that require free movement.
Pilot-operated pressure reducing valves can include an external pilot valve, diaphragm chamber, control tubing, connectors, strainers and pressure-sensing lines. These parts create narrow spaces and delicate projections that should not be pulled or loaded by the insulation cover.
A sectional jacket is normally more practical than one oversized piece. The main valve body, bonnet and pilot assembly can have separate but overlapping panels. Cutouts are reinforced, and closures are placed where the jacket can be opened without disconnecting pilot tubing. Any pilot vent or required open discharge path must remain unobstructed.
The main body usually represents the largest exposed hot surface. A fitted cover follows the body profile and transitions toward the inlet and outlet connections. Shaped seams and darts reduce open gaps around cast contours.
The bonnet may be included in the body jacket or covered independently. Separate coverage is useful when technicians need to remove the bonnet while the lower valve body remains insulated. The project drawing should identify the bonnet removal direction and the minimum clearance needed for tools and lifting.
Pressure adjustment must remain available according to the valve manufacturer's maintenance instructions and the plant's operating procedure. Adjustment screws, handwheels, locking nuts, caps and indicator scales should not be buried under an unmarked blanket.
BSTFLEX can provide an exposed adjustment area, a labeled access flap or a separate upper cover. The correct arrangement depends on how often the set pressure is changed and whether the adjustment component is hot. The insulation should not make unauthorized adjustment easier or interfere with any plant lockout or tamper-control method.
Small-bore tubing can be bent or damaged if it carries the jacket weight. Its route must be shown accurately in the drawing or photographs. The cover can pass around the tubing with reinforced openings, or the pilot assembly can remain outside the main body section.
Do not compress sensing lines between overlapping blanket edges. Tubing unions, filters and test connections should remain accessible where they are part of routine maintenance. If the valve has been piped differently from the standard manufacturer's drawing, measurements must reflect the installed configuration.
A reducing station commonly has upstream and downstream pressure gauges. Gauge faces, identification tags and calibration points may need to remain visible. A jacket can terminate below the instrument connection or use a reinforced cutout that avoids contact with the gauge stem.
Transmitters, switches and electrical connections require their own clearances. The cover must not support an instrument, trap moisture around a connection or obstruct cable entry. Mark every component that must remain outside the insulated area when submitting an inquiry.
The jacket may stop at the valve body, include the connection flanges or overlap the adjoining pipe insulation. Separate flange covers are often useful where bolts require periodic inspection or where the valve may be removed as a complete unit.
Provide flange outside diameter, face-to-face distance, bolt projection and the thickness of adjacent pipe insulation. The finished panels should leave a practical tool path and should not compress existing insulation. Threaded and union-ended valves need a different termination pattern from flanged valves.
A complete steam pressure reducing station may include an isolation valve, strainer, separator, drain or steam trap, pressure reducing valve, safety valve, gauges and downstream pipework. These components should not be hidden inside one large common blanket.
A better arrangement uses labeled, individually removable covers for each serviceable component. The PRV jacket can overlap the neighboring flange or pipe covers while remaining independent. This allows the reducing valve to be inspected without removing insulation from the entire station.
Steam-system insulation must not conceal a drainage problem. Drip pockets, drain valves, strainers, separator drains and steam trap connections should remain visible or have dedicated access according to the site's inspection practice.
The lower part of the jacket should not become a pocket that holds leaking condensate. If steam, water or process fluid enters the cover, remove it and inspect the equipment. Wet or contaminated insulation may need to be dried or replaced before the jacket is returned to service.
A removable PRV insulation jacket normally combines a hot-face liner, insulation core, outer fabric and fastening system. Material selection depends on actual temperature, location, contamination, weather and removal frequency.
The inner liner faces the valve surface. Coated fiberglass, high-temperature fiberglass, silica fabric or another suitable textile may be selected according to service temperature, abrasion and process exposure.
Fiberglass, silica, mineral wool, ceramic-fiber or other insulation materials can be considered. The type and thickness are selected from the thermal requirement, available space and handling needs rather than from the valve size alone.
The outer layer protects the insulation during normal operation, removal and storage. Coated fiberglass is commonly used for industrial jackets. Outdoor, chemical-splash and frequent-washdown locations require the environment to be identified before material selection.
Options include straps, buckles, hook-and-loop closures, D-rings, springs, wire lacing and combined systems. Fasteners are selected for the temperature at their location, vibration, available hand clearance and expected service frequency.
Supply the normal operating temperature and maximum design temperature for the valve surface. Steam pressure by itself is not enough for final jacket construction because the installed surface condition and nearby heat sources can influence the temperature seen by the cover.
If the project has a heat-loss target or maximum desired outer-surface temperature, provide the ambient temperature, wind condition, insulation thickness limit and calculation basis. Fabric temperature ratings alone do not establish the finished jacket's touch temperature. Thermal expectations should be evaluated for the complete layer construction and stated operating conditions.
Indoor jackets may encounter dust, oil mist, cleaning chemicals and repeated contact during maintenance. Outdoor installations add sunlight, rain, wind and water entry at seams. The installed valve orientation determines which overlaps face upward and where drainage needs to remain open.
For outdoor projects, identify whether the valve is under a roof, fully exposed or subject to washdown. A removable fabric jacket is not a pressure-tight enclosure and does not replace valve maintenance, leak repair or any required metal weather protection.
The valve manufacturer's model drawing is the preferred starting point, but installed accessories and tubing must also be measured. Send the following information where applicable:
When no drawing is available, provide a dimensioned sketch and clear photographs from the front, rear, both ends and above. Include a scale reference and mark the flow direction. Photographs should show the complete tubing route instead of only the valve body.
A compact direct-acting valve may use one main body panel and one bonnet cover. A large pilot-operated valve may require separate body, bonnet, pilot and flange sections. Panel divisions are chosen around maintenance tasks and safe handling weight.
Labels can identify equipment number, flow direction, upstream side, downstream side and installation order. Matching marks help technicians return every section to the correct position. For sites with several similar PRVs, include the equipment tag and valve model on the order.
For removal, open the closures and separate the panels instead of dragging the jacket over tubing or instruments. Store removed sections in a clean, dry place. Inspect fabrics, stitching, insulation and hardware before reinstallation.
The jacket provides removable thermal insulation only. It does not contain pressure, stop a leak, replace a safety guard, silence valve noise or correct unstable downstream pressure. It must not block a vent, drain, relief path, moving stem, actuator or control connection.
Safety valves and other protective devices should be treated as separate equipment. Any insulation arrangement around a pressure-control station must be reviewed by the responsible plant engineer and follow the valve manufacturer's instructions and site procedures.
BSTFLEX supplies one-off replacement jackets, project quantities and repeat OEM production. Covers can be made from approved drawings, field-measurement sheets or physical samples. Options include equipment labels, stainless-steel tags, panel numbering, color identification, installation sketches and private-label packaging.
For repeat orders, maintain control of the valve model, installed accessory layout and jacket revision. A change in pilot tubing, actuator or flange arrangement can affect fit even when the nominal valve size remains the same.
Use separate, serviceable covers for the other components in a pressure reducing station:
It is a fitted, reusable thermal cover made for the body and selected components of a pressure reducing valve. It can be opened and removed when the valve requires adjustment, inspection or repair.
Yes. The panel arrangement is adapted to the actual valve. Pilot-operated models normally require additional consideration for the pilot valve, diaphragm housing, control tubing and sensing connections.
That depends on the valve and the site's operating procedure. It can remain exposed, sit behind a labeled access flap or use a separate removable upper section. The required access should be marked on the drawing.
Yes. The jacket can terminate around the gauge connection or use a reinforced opening so the face and calibration access remain visible.
Separate jackets are usually more practical. Independent covers for the valve, flanges, strainer, separator and steam trap allow each component to be serviced without disturbing the whole station.
Yes. Provide the installed orientation and details of rain, sunlight, wind, washdown and chemical exposure so the outer fabric, seams, overlaps and fasteners can be selected accordingly.
Key information includes the face-to-face length, body profile, bonnet and adjustment dimensions, flange sizes, pilot and tubing layout, instrument locations, adjacent pipe insulation and required service clearances.
Yes. An existing cover can be used as a pattern if it still fits correctly. Identify any changes to the valve, pilot arrangement, materials or insulation thickness before production.
The jacket is not designed to change or control the pressure setting. It must be installed so that adjustment parts, vents, sensing lines and moving components function as intended.
Send the valve model, drawing, operating temperature, installed photographs, required access points and quantity to sales@pkfiresleeve.com. BSTFLEX will review the valve body, bonnet, pilot, instruments, tubing and connection details and propose a practical removable panel arrangement.
